詳細情報 |
|||
| LEDの色: | 赤 | タイプ: | サッカーのスコアボード |
|---|---|---|---|
| フレーム素材: | 鉄のキャビネット | 操作の種類: | PVCボタンボックス - 無線タイプ |
| プリント基板: | FR4 | 桁のサイズ: | 高さ500mm |
| 使用法: | アウトドア | 入力電圧: | 110V~250V |
| ハイライト: | 15ft×6ft LEDサッカースコアボード,腐食耐性のあるサッカースタジアムのスコアボード,高照明LED 屋外LEDスコアボード |
||
製品の説明
INTRODUCTION

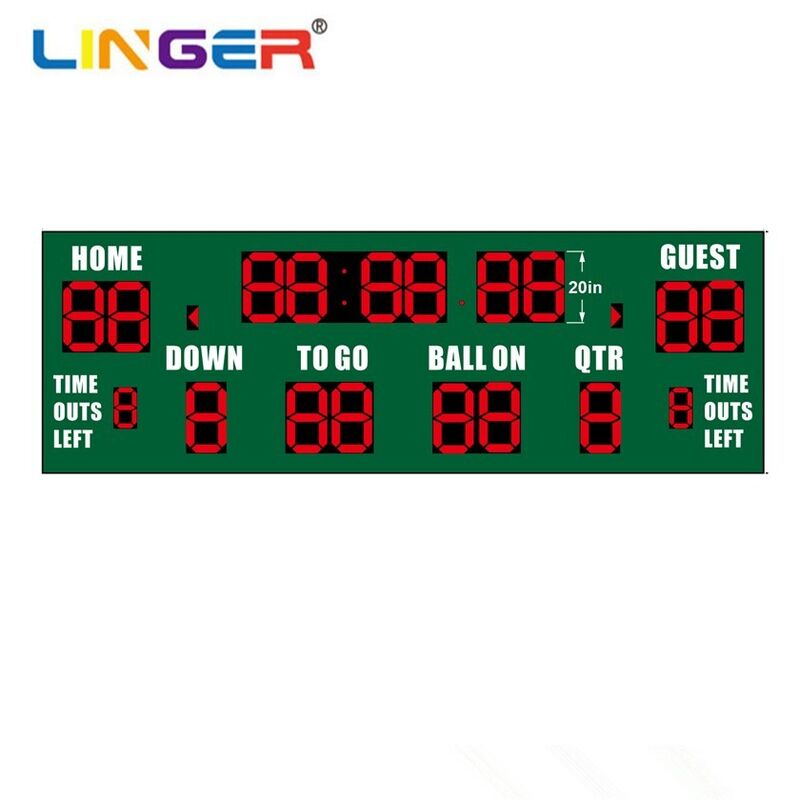

この巨大な15フィート x 6フィートのフットボールスコアボードは、グアムの大型スタジアム向けの究極の視覚コマンドセンターとして設計されています。その主な機能は、広大な屋外会場全体で、スコア、時間、ダウン、クォーターなどの主要なゲームデータを非常にクリアに、長距離から視認できるように表示することです。このシステムの重要な特徴は、チーム名をカスタマイズできることで、対戦チームを正確に表示するために即座に更新できます。これは、多様なローカルおよび地域トーナメントを主催する会場にとって不可欠です。特にグアムの過酷な熱帯環境に耐えるように作られており、耐腐食性の構造と、強烈な日光と塩分を含んだ空気に対応する高輝度LEDを備えています。単なる静的な看板ではなく、このスコアボードは統合された運用資産であり、シームレスな制御と伝説的な耐久性を実現するように設計されており、スタジアムのスポーツイベントを強化するための重要な永続的投資となります。
DIGIT SIZE OPTION
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
DATA SHEET
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Green/Yellow |
| Scoreboard Size | 4580mm L x 1830mm H x 90mm T |
| Digit Size | 20'' 500mm |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAC
Q1: What is the primary function of this 15ft x 6ft scoreboard, given its large size?
A: Its primary function is to serve as a visual command center, providing crystal-clear, long-distance visibility of all essential game data—including the score, game clock, down, and quarter—to every spectator across the vast stadium, ensuring no one misses a critical moment.
Q2: Why is the custom team name feature particularly important for this stadium in Guam?
A: Guam's stadium is likely a hub for diverse local and regional tournaments. The robustly customizable team name display allows event organizers to instantly and accurately represent any competing teams, making the scoreboard perfectly adaptable for a wide rotating schedule of matches and events without delay.
Q3: How is this scoreboard specifically engineered to survive in Guam's environment?
A: It is built with corrosion-resistant materials and ultra-bright, high-luminance LEDs specifically chosen to withstand the unique challenges of a tropical island climate: intense, direct sunlight, high humidity, and exposure to salt air, ensuring reliability and clear visibility year-round.
Key Features:
-
Superior Visibility and Core Game Clarity: Engineered as a definitive "visual command center," its massive 15ft x 6ft size and high-luminance LEDs guarantee crystal-clear, long-distance readability of all essential game data (score, time, down, quarter) across the vast stadium, ensuring every spectator stays perfectly informed under the intense tropical sun.
-
Unmatched Adaptability for Diverse Events: Featuring a robust, instantly customizable team name display, this scoreboard is perfectly suited for a venue hosting a rotating schedule of diverse local and regional tournaments. It seamlessly transitions between different teams and leagues, making it a versatile, all-in-one solution for the stadium's dynamic event calendar.
-
Purpose-Built for Extreme Environmental Durability: Specifically constructed to endure Guam's challenging tropical climate, it utilizes corrosion-resistant materials and sealed components to withstand relentless sun, high humidity, and salt air. This ensures exceptional long-term reliability, minimal maintenance, and lasting performance as a permanent outdoor asset.
